目标

了解 function 调用、工具调用 和 Agent

function：别用了（OpenAI API has deprecated functions in favor of tools）

Tool ：能用，但是需要我们自己调用函数，并实现后续逻辑

Agent: 推荐，自动调用我们本地定义的函数

核心思想：通过llms 来识别用户意图并调用本地函数（Agent）

https://python.langchain.com/docs/modules/agents/agent_types/openai_functions_agent

1. function call + tools

大模型的函数调用功能，最早来自OpenAI.

OpenAI 函数是 OpenAI API 中的一个功能，允许用户通过 API 调用自定义函数。这些函数可以是在 Python 中定义的任何函数，可以接受任何类型的输入，并返回任何类型的输出。这使得用户可以扩展 OpenAI 模型的功能，使其能够执行特定的任务或操作。

OpenAI 函数的接收方式如下：

  • 首先，用户需要定义一个函数，并将其作为参数传递给 OpenAI API。这个函数可以接受任何类型的输入，并返回任何类型的输出。
  • 然后，用户需要将这个函数传递给 OpenAI API 的 functions 参数。这个参数是一个字典，其中键是函数的名称，值是函数本身。
  • 当用户调用 OpenAI API 时，他们可以在请求中指定要调用的函数的名称和参数。OpenAI API 会将这个请求转发给相应的函数，并返回函数的输出。

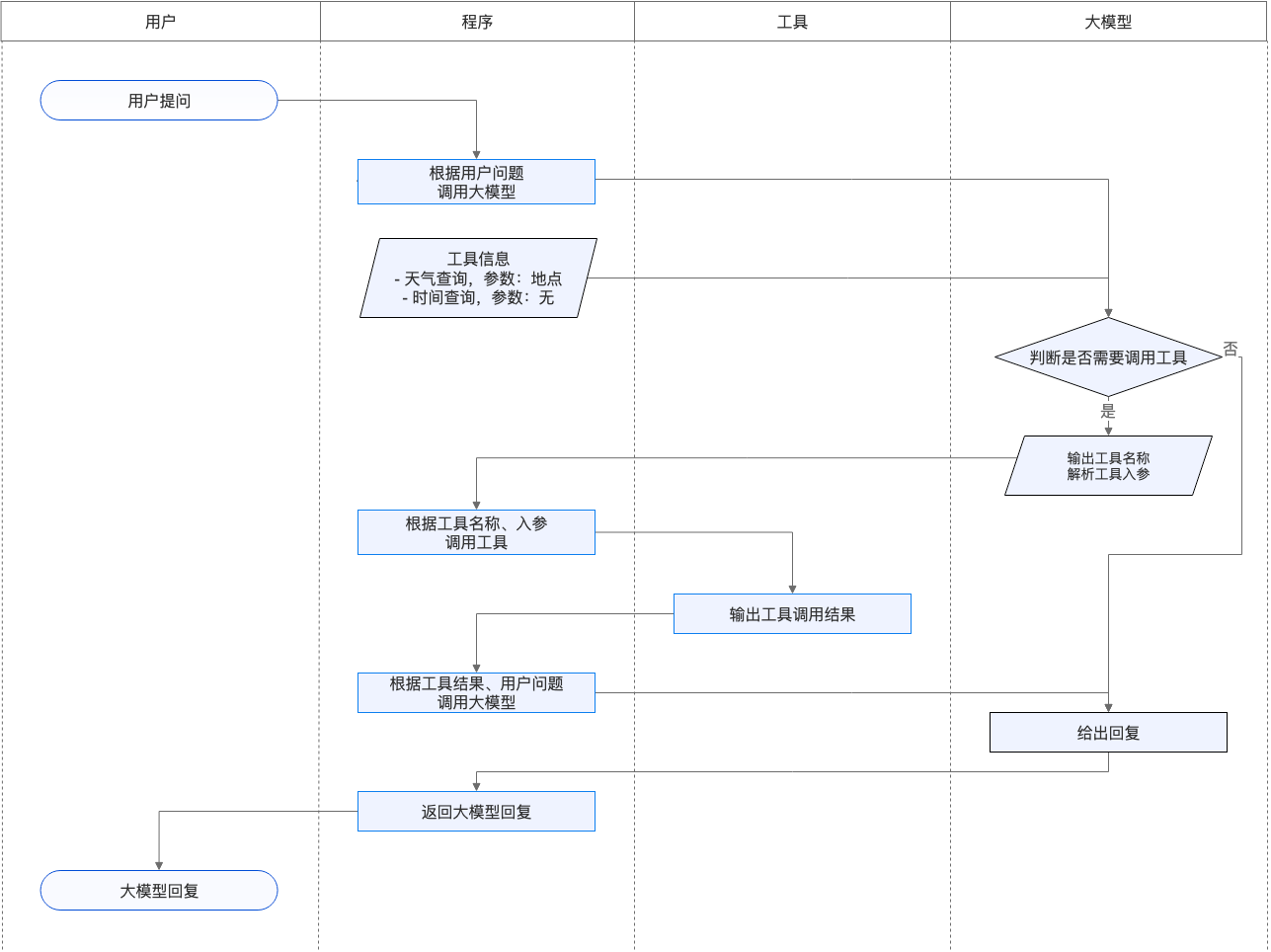

核心思路 我们借用阿里云上一张图来说明一下~

image-20240627100414764

【1】用户描述一个函数调用（通常通过Json Schema 格式的数据构造）

  • 函数名称：传给大模型，告诉模型这个函数的名字
  • 函数参数：函数有哪些参数，分别是什么意思
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
function = {
            "name": "get_flight_number",
            "description": "根据始发地、目的地和日期，查询对应日期的航班号",
            "parameters": {
                "type": "object",
                "properties": {
                    "departure": {
                        "description": "出发地",
                        "type": "string"
                    },
                    "destination": {
                        "description": "目的地",
                        "type": "string"
                    },
                    "date": {
                        "description": "日期",
                        "type": "string",
                    }
                },
                "required": ["departure", "destination", "date"]
            },
        }

【2】问题 + 函数描述 传递给模型

1
2
3
4
5
6
7
8
9
10
# 定义模型，通过bind 方法传递给模型
model = AzureChatOpenAI(
    openai_api_version="2024-02-15-preview",
    azure_deployment=os.getenv('DEPLOYMENT_NAME_GPT3p5'),
    temperature=0,
).bind(
    function_call={"name": "get_flight_number"}, functions=[function]
)
runnable = {"equation_statement": RunnablePassthrough()} | prompt | model
res = runnable.invoke("后天从北京到南极的飞机票")

【3】大模型进行识别，告诉用户需要执行函数，并返回输入参数

1
2
3
content='' additional_kwargs={'function_call':
  {'arguments': '{\n  "departure": "北京",\n  "destination": "南极",\n  "date": "2022-12-10"\n}', 'name': 'get_flight_number'}}
response_metadata={'finish_reason': 'stop', 'logprobs': None, 'content_filter_results': {}}

【4】用户执行函数，并将结果返回给大模型

需要我们自己在代码里处理 如何调用 get_flight_number， 并继续

1
2
3
4
5
6
7
# 函数名
res.additional_kwargs['function_call']['name']

#函数参数
res.additional_kwargs['function_call']['arguments']

get_flight_number(xxx,xxx,xxx)

【5】大模型给出最后回答

需要我们自己在代码里处理 ，如何继续处理get_flight_number 结果

问题来了

无论是 Function call 还是 Tool， 用户都要自己调用本地函数处理（硬编码在代码里）。

智谱AI举例 function call 举例

定义一个函数：获得航班号，参数：出发地，目的地，日期

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
{
    "type": "function",
    "function": {
        "name": "get_flight_number",
        "description": "根据始发地、目的地和日期，查询对应日期的航班号",
        "parameters": {
            "type": "object",
            "properties": {
                "departure": {
                    "description": "出发地",
                    "type": "string"
                },
                "destination": {
                    "description": "目的地",
                    "type": "string"
                },
                "date": {
                    "description": "日期",
                    "type": "string",
                }
            },
            "required": ["departure", "destination", "date"]
        },
    }
},

实现这个函数

1
2
3
4
5
6
7
8
9
10
11
12
def get_flight_number(date:str , departure:str , destination:str):
    flight_number = {
        "北京":{
            "上海" : "1234",
            "广州" : "8321",
        },
        "上海":{
            "北京" : "1233",
            "广州" : "8123",
        }
    }
    return { "flight_number":flight_number[departure][destination] }

将 函数 + 用户输入 传给模型

1
2
3
4
5
6
7
8
9
messages = []
messages.append({"role": "user", "content": "帮我查询从2024年1月20日，从北京出发前往上海的航班"})
response = client.chat.completions.create(
    model="glm-4",  # 填写需要调用的模型名称
    messages=messages,
    tools=tools,
)
print(response.choices[0].message)
messages.append(response.choices[0].message.model_dump())

模型返回

Function(arguments=’{“date”:”2024-01-20”,”departure”:”北京”,”destination”:”上海”}’, name=’get_flight_number’)

1
content=None role='assistant' tool_calls=[CompletionMessageToolCall(id='call_8513536572832694738', function=Function(arguments='{"date":"2024-01-20","departure":"北京","destination":"上海"}', name='get_flight_number'), type='function')]

写一个函数，分析这个返回，如果需要执行函数，就执行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
def parse_function_call(model_response,messages):
    # 处理函数调用结果，根据模型返回参数，调用对应的函数。
    # 调用函数返回结果后构造tool message，再次调用模型，将函数结果输入模型
    # 模型会将函数调用结果以自然语言格式返回给用户。
    if model_response.choices[0].message.tool_calls:
        tool_call = model_response.choices[0].message.tool_calls[0]
        args = tool_call.function.arguments
        function_result = {}
        if tool_call.function.name == "get_flight_number":
            function_result = get_flight_number(**json.loads(args))
        if tool_call.function.name == "get_ticket_price":
            function_result = get_ticket_price(**json.loads(args))
        messages.append({
            "role": "tool",
            "content": f"{json.dumps(function_result)}",
            "tool_call_id":tool_call.id
        })
        response = client.chat.completions.create(
            model="glm-4",  # 填写需要调用的模型名称
            messages=messages,
            tools=tools,
        )
        print(response.choices[0].message)
        messages.append(response.choices[0].message.model_dump())

执行完函数之后，需要把结果反馈给模型。最后，模型给出结果

1
content='根据您的查询，我已经帮您找到了2024年1月20日从北京出发前往上海的航班，航班号为1234。' role='assistant' tool_calls=None

然后我们再把结构，保存在对话列表

1
messages.append(response.choices[0].message.model_dump())

在Langchian中调用 function

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
function = {
    "name": "get_flight_number",
    "description": "根据始发地、目的地和日期，查询对应日期的航班号",
    "parameters": {
        "type": "object",
        "properties": {
            "departure": {
                "description": "出发地",
                "type": "string"
            },
            "destination": {
                "description": "目的地",
                "type": "string"
            },
            "date": {
                "description": "日期",
                "type": "string",
            }
        },
        "required": ["departure", "destination", "date"]
    },
}

prompt = ChatPromptTemplate.from_messages(
    [
        (
            "system",
            "你是飞机票务信息提供商",
        ),
        ("human", "{equation_statement}"),
    ]
)
# 函数调用
model = AzureChatOpenAI(
    openai_api_version="2024-02-15-preview",
    azure_deployment=os.getenv('DEPLOYMENT_NAME_GPT3_4K_JP'),
    temperature=0,
).bind(
    function_call={"name": "get_flight_number"}, functions=[function]
)
runnable = {"equation_statement": RunnablePassthrough()} | prompt | model
res = runnable.invoke("后天从北京到南极的飞机票")
print(res)

输出

1
content='' additional_kwargs={'function_call': {'arguments': '{\n  "departure": "北京",\n  "destination": "南极",\n  "date": "2022-03-06"\n}', 'name': 'get_flight_number'}} response_metadata={'finish_reason': 'stop', 'logprobs': None}

在Langchian中调用 Tool

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
# 工具调用
  tools = [
      {
          "type": "function",
          "function": {
              "name": "get_flight_number",
              "description": "根据始发地、目的地和日期，查询对应日期的航班号",
              "parameters": {
                  "type": "object",
                  "properties": {
                      "departure": {
                          "description": "出发地",
                          "type": "string"
                      },
                      "destination": {
                          "description": "目的地",
                          "type": "string"
                      },
                      "date": {
                          "description": "日期",
                          "type": "string",
                      }
                  },
                  "required": ["departure", "destination", "date"]
              },
          },
      },
  ]
  # Azure Openai
  os.environ["AZURE_OPENAI_API_KEY"] = os.getenv('MY_AZURE_OPENAI_API_KEY')
  os.environ["AZURE_OPENAI_ENDPOINT"] = os.getenv('MY_AZURE_OPENAI_ENDPOINT')
  DEPLOYMENT_NAME_GPT3P5 = os.getenv('MY_DEPLOYMENT_NAME_GPT3P5')
  model = AzureChatOpenAI(
      openai_api_version="2023-05-15",
      azure_deployment=DEPLOYMENT_NAME_GPT3P5,
  ).bind(
      tools=tools
  )
  runnable = {"equation_statement": RunnablePassthrough()} | prompt | model

  res = runnable.invoke("后天从北京到南极的飞机票")
  # res = runnable.invoke("后天从北京到上海的火车票")
  pass

输出

1
content='' additional_kwargs={'tool_calls': [{'id': 'call_1lP2S9SFi9FDdhYZNkXVxpqt', 'function': {'arguments': '{\n"departure": "北京",\n"destination": "南极",\n"date": "2022-11-18"\n}', 'name': 'get_flight_number'}, 'type': 'function'}]} response_metadata={'finish_reason': 'tool_calls', 'logprobs': None}

Agent （全自动）

代理的核心思想是使用语言模型来选择要采取的一系列行动。在链式中，一系列行动是硬编码在代码中的。而在代理中，语言模型被用作推理引擎，以确定要采取哪些行动以及它们的顺序。

函数声明： @tool

1
2
3
4
5
from langchain.agents import tool,
  @tool
    def get_flight_number(departure, destination, date) -> str:
        """根据输入的出发地（departure），目的地（destination），时间（date），给出航班号"""
        return "[茉卷航空666]"

构建chain

1
2
3
4
5
6
7
8
9
10
11
12
13
user_template = '{input}'
prompt = ChatPromptTemplate.from_messages(
    [
        ("system", "You are a helpful assistant"),
        MessagesPlaceholder("chat_history", optional=True),
        ("human", user_template),
        MessagesPlaceholder("agent_scratchpad"),
    ]
)
model = AzureChatOpenAI(
    openai_api_version="2024-02-15-preview",
    azure_deployment=os.getenv('DEPLOYMENT_NAME_GPT3P5'),
)

调用 Agent

1
2
3
4
tool_list = [get_flight_number]
agent = create_openai_functions_agent(model, tool_list, prompt)
agent_executor = AgentExecutor(agent=agent, tools=tool_list, verbose=True)
res = agent_executor.invoke({"input": "后天从北京到南极的飞机票"})

结果

1
2
3
4
> Entering new AgentExecutor chain...
Invoking: `get_flight_number` with `{'departure': '北京', 'destination': '南极', 'date': '后天'}`
[茉卷航空666]根据查询，后天从北京到南极的飞机票的航班号是[茉卷航空666]。
> Finished chain.

完整代码

zhipuai function call

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
import json
import os
from zhipuai import ZhipuAI
def get_flight_number(date:str , departure:str , destination:str):
    flight_number = {
        "北京":{
            "上海" : "1234",
            "广州" : "8321",
        },
        "上海":{
            "北京" : "1233",
            "广州" : "8123",
        }
    }
    return { "flight_number":flight_number[departure][destination] }
def get_ticket_price(date:str , flight_number:str):
    return {"ticket_price": "1000"}

def parse_function_call(model_response,messages):
    # 处理函数调用结果，根据模型返回参数，调用对应的函数。
    # 调用函数返回结果后构造tool message，再次调用模型，将函数结果输入模型
    # 模型会将函数调用结果以自然语言格式返回给用户。
    if model_response.choices[0].message.tool_calls:
        tool_call = model_response.choices[0].message.tool_calls[0]
        args = tool_call.function.arguments
        function_result = {}
        if tool_call.function.name == "get_flight_number":
            function_result = get_flight_number(**json.loads(args))
        if tool_call.function.name == "get_ticket_price":
            function_result = get_ticket_price(**json.loads(args))
        messages.append({
            "role": "tool",
            "content": f"{json.dumps(function_result)}",
            "tool_call_id":tool_call.id
        })
        response = client.chat.completions.create(
            model="glm-4",  # 填写需要调用的模型名称
            messages=messages,
            tools=tools,
        )
        print(response.choices[0].message)
        messages.append(response.choices[0].message.model_dump())

if __name__ == '__main__':
    client = ZhipuAI(api_key=os.getenv('MY_ZHIPUAI_API_KEY'))
    messages = []
    tools = [
        {
            "type": "function",
            "function": {
                "name": "get_flight_number",
                "description": "根据始发地、目的地和日期，查询对应日期的航班号",
                "parameters": {
                    "type": "object",
                    "properties": {
                        "departure": {
                            "description": "出发地",
                            "type": "string"
                        },
                        "destination": {
                            "description": "目的地",
                            "type": "string"
                        },
                        "date": {
                            "description": "日期",
                            "type": "string",
                        }
                    },
                    "required": ["departure", "destination", "date"]
                },
            }
        },
        {
            "type": "function",
            "function": {
                "name": "get_ticket_price",
                "description": "查询某航班在某日的票价",
                "parameters": {
                    "type": "object",
                    "properties": {
                        "flight_number": {
                            "description": "航班号",
                            "type": "string"
                        },
                        "date": {
                            "description": "日期",
                            "type": "string",
                        }
                    },
                    "required": ["flight_number", "date"]
                },
            }
        },
    ]

    messages = []
    messages.append({"role": "user", "content": "帮我查询从2024年1月20日，从北京出发前往上海的航班"})
    response = client.chat.completions.create(
        model="glm-4",  # 填写需要调用的模型名称
        messages=messages,
        tools=tools,
    )
    print(response.choices[0].message)
    messages.append(response.choices[0].message.model_dump())
    pass

    parse_function_call(response, messages)
    pass

langchain: function call, tool, agent

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
import json
import os
import uuid

from langchain.agents.output_parsers import XMLAgentOutputParser
from langchain.chains.llm import LLMChain
from langchain_community.chat_models.azure_openai import AzureChatOpenAI
from langchain_community.chat_models.baidu_qianfan_endpoint import QianfanChatEndpoint
from langchain_core.output_parsers import StrOutputParser
from langchain_core.prompts import PromptTemplate, ChatPromptTemplate, MessagesPlaceholder
from langchain_core.runnables import RunnablePassthrough
from langchain import hub
from langchain.agents import AgentExecutor, tool, create_openai_functions_agent

run_uid = uuid.uuid4().hex[:6]
os.environ["LANGCHAIN_PROJECT"] = f" [Agent call locat func] Tracing Walkthrough - {run_uid}"
os.environ["LANGCHAIN_TRACING_V2"] = 'true'
os.environ["LANGCHAIN_API_KEY"] = os.getenv('MY_LANGCHAIN_API_KEY')

if __name__ == '__main__':

    function = {
        "name": "get_flight_number",
        "description": "根据始发地、目的地和日期，查询对应日期的航班号",
        "parameters": {
            "type": "object",
            "properties": {
                "departure": {
                    "description": "出发地",
                    "type": "string"
                },
                "destination": {
                    "description": "目的地",
                    "type": "string"
                },
                "date": {
                    "description": "日期",
                    "type": "string",
                }
            },
            "required": ["departure", "destination", "date"]
        },
    }

    prompt = ChatPromptTemplate.from_messages(
        [
            (
                "system",
                "你是飞机票务信息提供商",
            ),
            ("human", "{equation_statement}"),
        ]
    )

    # 函数调用
    # Azure Openai
    os.environ["AZURE_OPENAI_API_KEY"] = os.getenv('MY_AZURE_OPENAI_API_KEY')
    os.environ["AZURE_OPENAI_ENDPOINT"] = os.getenv('MY_AZURE_OPENAI_ENDPOINT')
    DEPLOYMENT_NAME_GPT3P5 = os.getenv('MY_DEPLOYMENT_NAME_GPT3P5')
    model = AzureChatOpenAI(
        openai_api_version="2023-05-15",
        azure_deployment=DEPLOYMENT_NAME_GPT3P5,
    ).bind(
        function_call={"name": "get_flight_number"}, functions=[function]
    )
    runnable = {"equation_statement": RunnablePassthrough()} | prompt | model
    # res = runnable.invoke("后天从北京到南极的飞机票")
    # print(res)
    pass

    # 工具调用
    tools = [
        {
            "type": "function",
            "function": {
                "name": "get_flight_number",
                "description": "根据始发地、目的地和日期，查询对应日期的航班号",
                "parameters": {
                    "type": "object",
                    "properties": {
                        "departure": {
                            "description": "出发地",
                            "type": "string"
                        },
                        "destination": {
                            "description": "目的地",
                            "type": "string"
                        },
                        "date": {
                            "description": "日期",
                            "type": "string",
                        }
                    },
                    "required": ["departure", "destination", "date"]
                },
            },
        },
        {
            "type": "function",
            "function": {
                "name": "get_train_number",
                "description": "根据始发地、目的地和日期，查询对应日期的火车票",
                "parameters": {
                    "type": "object",
                    "properties": {
                        "departure": {
                            "description": "出发地",
                            "type": "string"
                        },
                        "destination": {
                            "description": "目的地",
                            "type": "string"
                        },
                        "date": {
                            "description": "日期",
                            "type": "string",
                        }
                    },
                    "required": ["departure", "destination", "date"]
                },
            },
        }
    ]
    # Azure Openai
    os.environ["AZURE_OPENAI_API_KEY"] = os.getenv('MY_AZURE_OPENAI_API_KEY')
    os.environ["AZURE_OPENAI_ENDPOINT"] = os.getenv('MY_AZURE_OPENAI_ENDPOINT')
    DEPLOYMENT_NAME_GPT3P5 = os.getenv('MY_DEPLOYMENT_NAME_GPT3P5')
    model = AzureChatOpenAI(
        openai_api_version="2023-05-15",
        azure_deployment=DEPLOYMENT_NAME_GPT3P5,
    ).bind(
        tools=tools
    )
    runnable = {"equation_statement": RunnablePassthrough()} | prompt | model

    # res = runnable.invoke("后天从北京到南极的飞机票")
    # res = runnable.invoke("后天从北京到上海的火车票")
    pass
    # 如果需要执行函数
    # if len(res.additional_kwargs) > 0:
    #
    #     func_name = res.additional_kwargs['tool_calls'][0]['function']['name']
    #     if func_name == 'get_flight_number':
    #         data_str = res.additional_kwargs['tool_calls'][0]['function']['arguments']
    #         # 自己加
    #         pass

    # Agent

    user_template = '{input}'
    prompt = ChatPromptTemplate.from_messages(
        [
            ("system", "You are a helpful assistant"),
            MessagesPlaceholder("chat_history", optional=True),
            ("human", user_template),
            MessagesPlaceholder("agent_scratchpad"),
        ]
    )
    # Azure Openai
    os.environ["AZURE_OPENAI_API_KEY"] = os.getenv('MY_AZURE_OPENAI_API_KEY')
    os.environ["AZURE_OPENAI_ENDPOINT"] = os.getenv('MY_AZURE_OPENAI_ENDPOINT')
    DEPLOYMENT_NAME_GPT3P5 = os.getenv('MY_DEPLOYMENT_NAME_GPT3P5')
    model = AzureChatOpenAI(
        openai_api_version="2023-05-15",
        azure_deployment=DEPLOYMENT_NAME_GPT3P5,
    )
    @tool
    def get_flight_number(departure, destination, date) -> str:
        """根据输入的出发地（departure），目的地（destination），时间（date），给出航班号"""
        return "[茉卷航空666]"

    tool_list = [get_flight_number]
    agent = create_openai_functions_agent(model, tool_list, prompt)
    agent_executor = AgentExecutor(agent=agent, tools=tool_list, verbose=True)

    res = agent_executor.invoke({"input": "后天从北京到南极的飞机票"})
    pass
